Intes

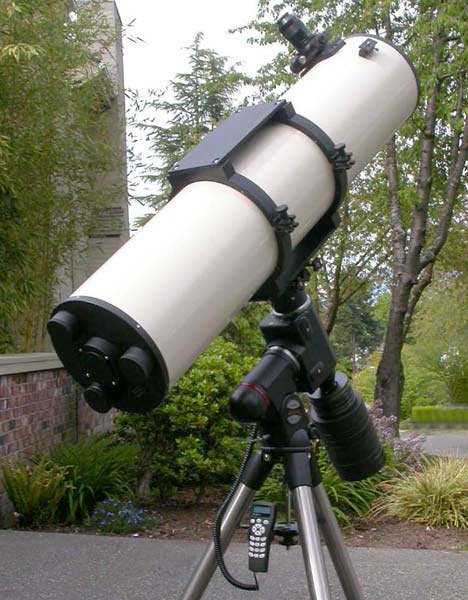

Micro MN 106 10” F/5.5 Maksutov-Newtonian OTA
DELUXE
Overview
A considerably larger scope then the MN86offering
56% more light gathering power than the MN86 and
100% more than the MN76.
This scope is the last word in a Mak Newt. Offering
all of the features of the smaller versions with
heavy duty concentric screw collimation system. Due
to it’s size this scope is preferably handled
by two people but can be managed by one. The rotatable
ring bracket is attached to the mount first and then
the scope is placed in the open bracket and then
clamped .
The ultimate field scope or ideal for a permanent
set-up. Superb views of deep sky objects with the
added aperture. Top quality Russian optics at 1/8
to 1/10 wave allow this scope to separate the closest
double stars and discern the subtlest of lunar and
planetary details available in an amateur telescope
of any kind at any price. Colors and star tests are
outstanding as one would expect from the Mak Newt
design.
Specifications
Clear aperture ----254mm (10”)
Focal length ----1397mm (55”)
Tube diameter ----300mm (11.8”)
Tube length ----1346mm (53”)
Tube weight ----23kg (50.6lbs) plus tube rings.
Diameter of secondary mirror ----53mm
(2.08”)
Diameter of secondary obstruction -----20%
Meniscus ----BK7 less than 1%
reflective broadband multicoated
Mirror ----Sital
95% reflective, SiO2 coated.
Tube ----aluminum
cream colored fully baffled.
Focuser ----two speed
low profile 2” with
adapter.
Finder ----8x50mm
with quick release bracket
Camera holder
Tube holder ----Losmandy
style dovetail plate.
Optical quality ----1/8
to 1/10th wave
Built in 12Volt cooling fan with on/off switch. -------------------------------------Price $9429 USD
|
